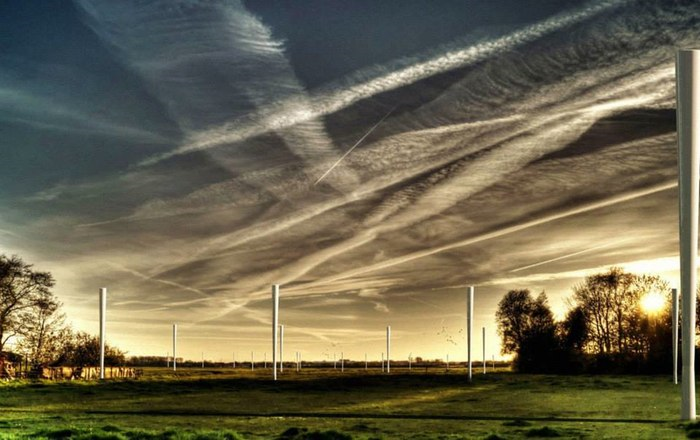

A Spanish company called Vortex Bladeless is proposing a radical new way to generate wind energy .Their idea is the Vortex, a bladeless wind turbine that looks like a giant rolled joint shooting into the sky. The Vortex has the same goals as conventional wind turbines, to turn breeze into kinetic energy that can be used as electricity but it goes about it in an entirely different way. When wind passes one of the cylindrical turbines, it shears off the downwind side of the cylinder in a spinning whirlpool or vortex. That vortex then exerts force on the cylinder, causing it to vibrate. The kinetic energy of the oscillating cylinder is converted to electricity through a linear generator similar to those used to harness wave energy.
Instead of capturing energy via the circular motion of a propeller, the Vortex takes advantage of what’s known as vorticity, an aerodynamic effect that produces a pattern of spinning vortices. The Vortex’s shape was developed computationally to ensure the spinning wind (vortices) occurs synchronously along the entirety of the mast. “The swirls have to work together to achieve good performance,” Villarreal explains. In its current prototype, the elongated cone is made from a composite of fiberglass and carbon fiber, which allows the mast to vibrate as much as possible (an increase in mass reduces natural frequency). At the base of the cone are two rings of repelling magnets, which act as a sort of nonelectrical motor. When the cone oscillates one way, the repelling magnets pull it in the other direction, like a slight nudge to boost the mast’s movement regardless of wind speed. This kinetic energy is then converted into electricity via an alternator that multiplies the frequency of the mast’s oscillation to improve the energy-gathering efficiency.
There are no gears, bolts, or mechanically moving parts, which they say makes the Vortex cheaper to manufacture and maintain. The founders claim their Vortex Mini, which stands at around 41 feet tall, can capture up to 40 percent of the wind’s power during ideal conditions (this is when the wind is blowing at around 26 miles per hour). Based on field testing, the Mini ultimately captures 30 percent less than conventional wind turbines, but that shortcoming is compensated by the fact that you can put double the Vortex turbines into the same space as a propeller turbine.
The Vortex team says there are some clear advantages to their model, it’s less expensive to manufacture, totally silent, and safer for birds since there are no blades to fly into. Vortex Bladeless says its turbine would cost around 51 percent less than a traditional turbine whose major costs come from the blades and support system. Plus, Suriol says, it’s pretty cool-looking. “It looks like asparagus,” he says. “It’s much more natural.”
For more information please visit: www.vortexbladeless.com
